If you have ever built or maintained a vintage PC from the late 386 or early 486 era, you are likely familiar with one of the most frustrating bottlenecks of the 1990s: the infamous 504MB hard drive limit. In a fascinating new video, retro hardware enthusiast channel Bits und Bolts dives deep into the historical conflict between BIOS Cylinder-Head-Sector (CHS) parameters and the IDE interface specifications, demonstrating how to bypass this limitation entirely by modifying a motherboard’s BIOS.
The Math Behind the Bottleneck

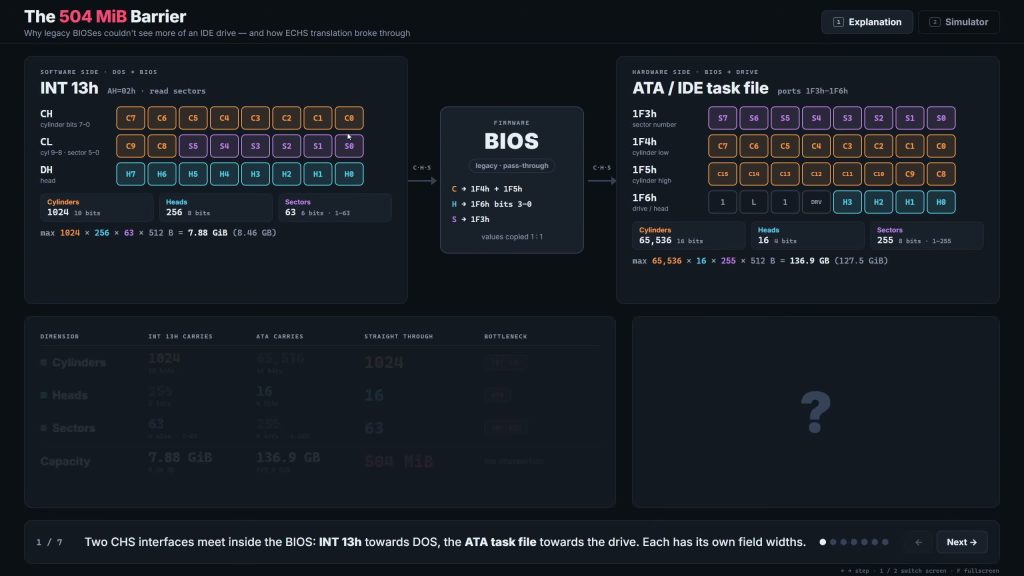

The 504MB (528 million bytes) barrier was a classic system architecture clash. The standard BIOS interface allowed up to 1,024 cylinders, 255 heads, and 63 sectors per track. Meanwhile, the IDE interface supported 65,536 cylinders, 16 heads, and 255 sectors. Because MS-DOS and the system BIOS had to work together within the bounds of both specifications, the operating system was forced to use the lowest common denominator for each parameter: 1,024 cylinders (from the BIOS limit), 16 heads (from the IDE limit), and 63 sectors (from both limits). Multiplying these parameters together yields exactly 528,482,304 bytes, or 504 MiB.
Patching the Soyo SY-019L1
In the video, Bits und Bolts sets out to break this barrier on a vintage AMD 386 DX40 machine running on a SOYO SY-019L1 motherboard. By writing a custom translation routine and patching the system’s original BIOS, they succeeded in implementing Extended CHS (ECHS) support. This translation dynamically remaps the physical cylinders and heads of a larger drive so that the BIOS can address the entire capacity without failing during boot or disk access.
For those interested in exploring the technical details or patching their own systems, the modified BIOS and source code have been made publicly available. You can check out the SOYO SY-019L1 BIOS 504 Patch and the broader BUBios Collection on GitHub.
To see the full process, complete with theoretical explanations, logic analyzer captures, and a successful live demo, watch the original video below.
